Vacuum Lifting Air Cylinder MVB For Gripping System With Aluminium Material

1. Introduction and application:

• When vacuum is introduced, the suction cup installed on the lifting cylinder will quickly extend out with the cylinder piston, and automatically lift and keep the adsorption state after contacting the sucked object.
• Short cycle, controlled by a single vacuum throttle valve, automatically compensates the height of the sucked object, the piston does not rotate, and the operation is simple.
• It can be used to adsorb objects machined, molded or thermoformed. It can also be used to separate paper, plastic, steel plate, etc.

2.Technical parameters and order codes:

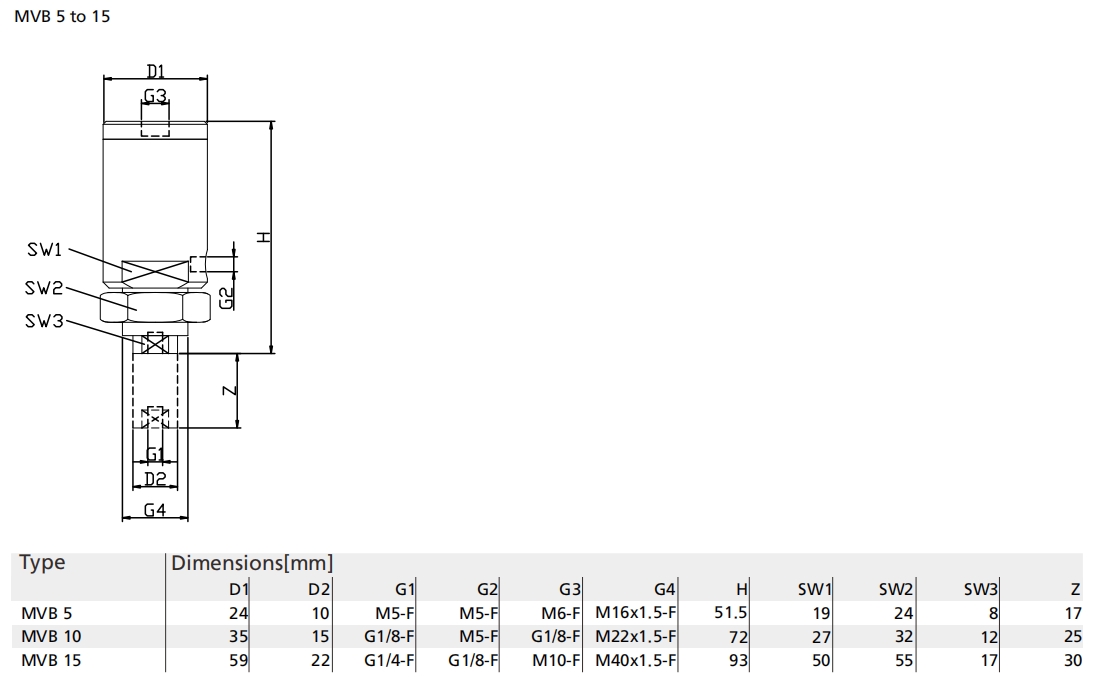

3.Design Data:

Lifting Cylinder MVB.pdf
