1.Introduction and applicaton:

• Handling fragile and vulnerable parts such as electronic components, injection molded parts, etc.
• Handling of workpieces with extremely uneven surfaces such as cartons, tubes, etc. for optimal fit on uneven surfaces.
• Internal support (from diameter 52 mm) prevents workpiece from being sucked in.
• Special design of the folds permits use in systems with very short cycle times.

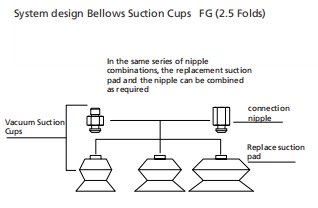

2.Structure

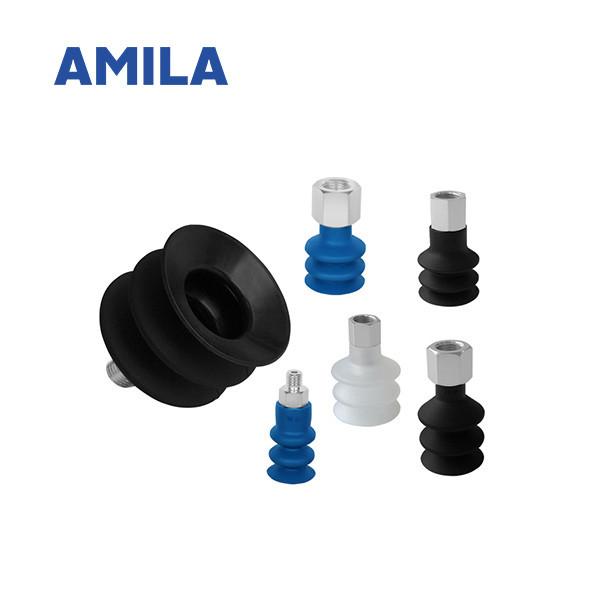

• Robust, wear-resistant suction cup FG with single sealing lip,consisting of suction cup FG with 2.5 folds and connection nipple.
• In-line threaded connectors;
• Suction cups with a diameter of 52 mm or more with supports on the bottom.

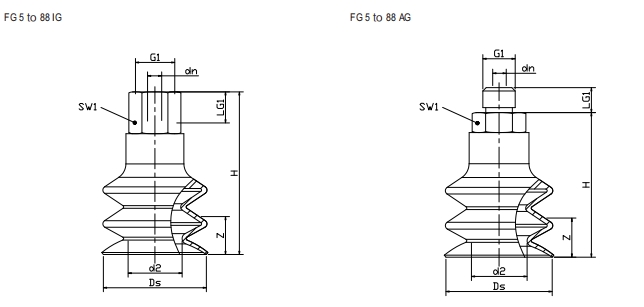

3.Technology data:

4.Design data:

Bellows Suction Cups FG.pdf
