1. Introduction and applicaton

• For quick handling of metal sheets (short cycle).
• No dents or deformations when handling metal sheets.
• For use in handling system for stamping lines in the automotive industry.
• The bottom of the suction cup has a special groove structure to prevent the oily metal plate from sliding during handling,ensuring accurate positioning of the workpiece in stamping press.

2. Structure

• Rugged and durable flat suction cup MAF,made of NBR with single sealing lip, special groove design and internal support design;
• Vulcanizing fixed the suction cup and the joint (high strength);
• Suction cup available with various connection types;
• Available in two material hardness values(45 Shore,60Shore);

3. Technology data:

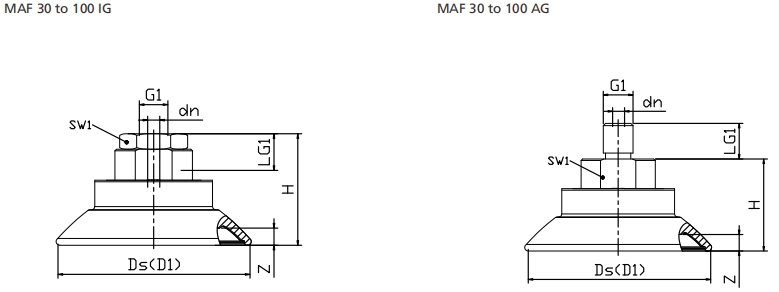

4.Design data

Flat Suction Cup MAF.pdf
