1. Introduction and applicaton

• Handling of long narrow sheet metal,e.g. reinforcing ribs and plates.
• The bottom of the suction cup has a special groove structure to prevent the oily metal plate from sliding during the handling process, ensuring accurate positioning of the workpiece in the press.
• Carrying sheet metal parts with slightly curved surfaces.

2. Structure

• Suction cup available with various connection types;
• Available in two material hardness values(45 shore, 60 shore);

3. Technology data:

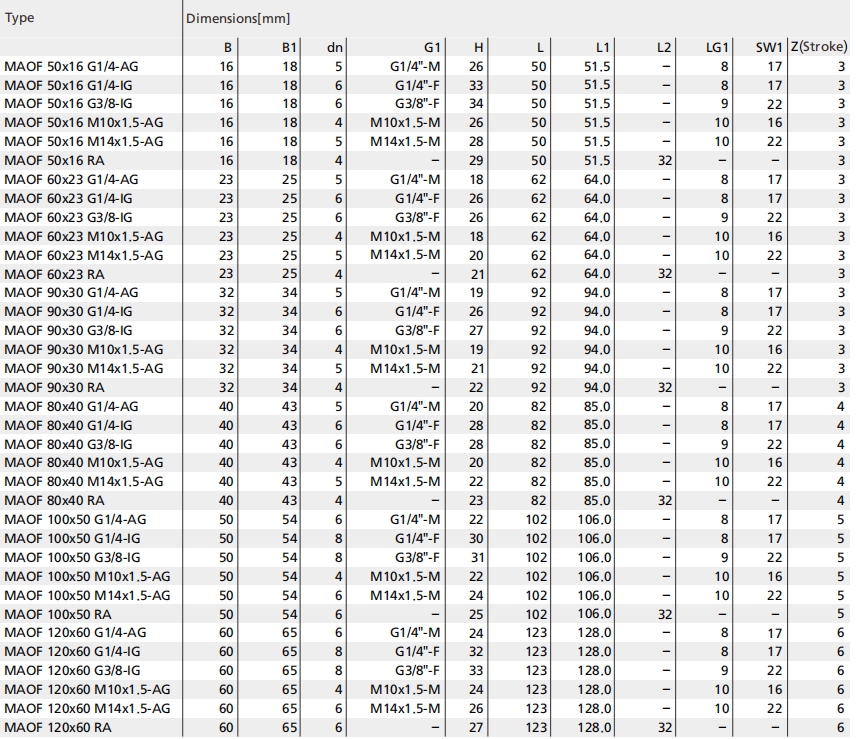

4. Design data:

Flat Suction Cups MAOF (Oval).pdf
