Foam Vacuum Gripper MLE With Special GERANIUM Material And Shore Hardness
1. Introduction

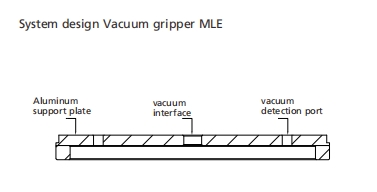

2. Structure
3. Technical Parameter:
| model | suction | Internal volume | working temperature |
| Ds[N] | [cm3] | [℃] | |
| MLE 107×75 G1/4 | 90 | 55.6 | -40…80 |
| MLE 135×50 G1/4 | 60 | 34 | -40…80 |
| MLE 135×60 G1/4 | 80 | 50 | -40…80 |
| MLE 290×68 G3/8 | 250 | 152.6 | -40…80 |
| MLE 290×140 G1/2 | 720 | 434.5 | -40…80 |
4. Ordering data
| model | ordering data | model | ordering data |
| MLE 107×75 G1/4 | 90.02.01.00694 | MLE 290×68 G3/8 | 90.02.01.00697 |
| MLE 135×50 G1/4 | 90.02.01.00695 | MLE 290×140 G1/2 | 90.02.01.00698 |
| MLE 135×60 G1/4 | 90.02.01.00696 |

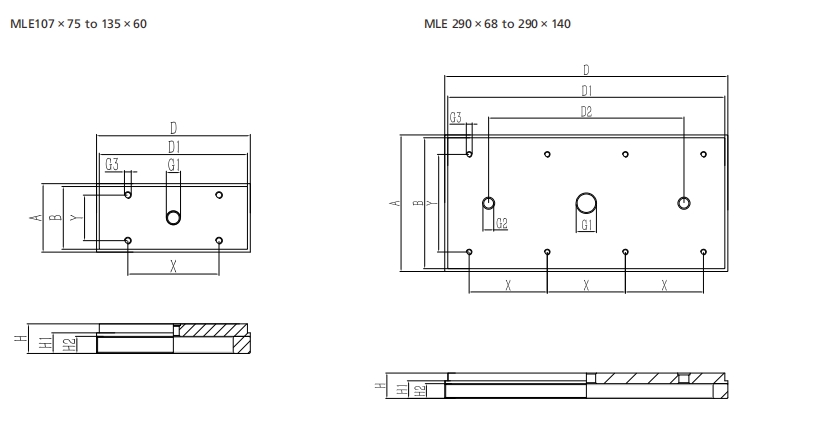

| Type | Size [mm] | ||||||||||||
| D | D1 | D2 | A | B | H | H1 | H2 | G1 | G2 | G3 | X | Y | |
| MLE 107×75 G1/4 | 107 | 102 | - | 75 | 70 | 26 | 18 | 15 | G1/4 | - | M5 | 60 | 40 |
| MLE 135×50 G1/4 | 135 | 130 | - | 50 | 45 | 26 | 18 | 15 | G1/4 | - | M5 | 80 | 30 |
| MLE 135×60 G1/4 | 135 | 130 | - | 60 | 55 | 26 | 18 | 15 | G1/4 | - | M5 | 80 | 40 |
| MLE 290×68 G3/8 | 290 | 284 | 200 | 68 | 62 | 26 | 18 | 15 | G3/8 | G1/8 | M5 | 80 | 40 |
| MLE 290×140 G1/2 | 290 | 284 | 200 | 140 | 134 | 26 | 18 | 15 | G1/2 | G1/8 | M5 | 80 | 100 |
|
|
