| Brand Name : | AMILA |
| Model Number : | ATD MX55 |
| Price : | Negotiatable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | Negotiatable |
| Delivery Time : | Depending on the order quantity |
Foam Vacuum Gripper Large Area External Rubber Suction Cups ATD MX55
1. Benefits
2. Technical Data:
| Type | Number of suction holes | Required suction volume | Suction force | Weight |
| 【I/min】 | 【N】 | 【kg】 | ||
| ATD-SVK 294 MX55 | 8 | 150 | 210 | 2.4 |
| ATD-SVK 420 MX55 | 12 | 300 | 320 | 3.2 |
| ATD-SVK 508 MX55 | 15 | 370 | 440 | 3.7 |
| ATD-SVK 618 MX55 | 18 | 450 | 520 | 4.2 |
| ATD-SVK 816 MX55 | 24 | 600 | 610 | 6.5 |
| ATD-SVK 978 MX55 | 29 | 750 | 720 | 7.7 |
| ATD-SVK 1212 MX55 | 36 | 900 | 800 | 9 |
| ATD-SVK 1410 MX55 | 42 | 1050 | 900 | 10.5 |

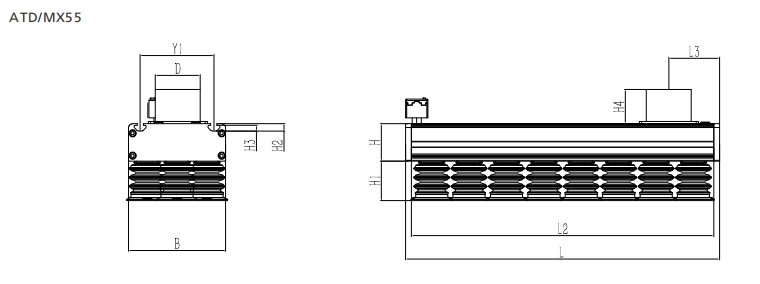

3. Design data:
| Type | Dimensions(mm) | ||||||||||
| B | D | H | H1 | H2 | H3 | H4 | L | L2 | L3 | Y1 | |
| ATD-SVK 294 MX55 | 130 | 60 | 50 | 53 | 9.7 | 7.7 | 46 | 294 | 278 | 68 | 98 |
| ATD-SVK 420 MX55 | 130 | 60 | 50 | 53 | 9.7 | 7.7 | 46 | 420 | 404 | 68 | 98 |
| ATD-SVK 508 MX55 | 130 | 60 | 50 | 53 | 9.7 | 7.7 | 46 | 508 | 492 | 68 | 98 |
| ATD-SVK 618 MX55 | 130 | 60 | 50 | 53 | 9.7 | 7.7 | 46 | 618 | 602 | 68 | 98 |
| ATD-SVK 816 MX55 | 130 | 60 | 50 | 53 | 9.7 | 7.7 | 46 | 816 | 800 | 68 | 98 |
| ATD-SVK 978 MX55 | 130 | 60 | 50 | 53 | 9.7 | 7.7 | 46 | 978 | 962 | 68 | 98 |
| ATD-SVK 1212 MX55 | 130 | 60 | 50 | 53 | 9.7 | 7.7 | 46 | 1212 | 1196 | 68 | 98 |
| ATD-SVK 1410 MX55 | 130 | 60 | 50 | 53 | 9.7 | 7.7 | 46 | 1410 | 1394 | 68 | 98 |
|
|
