| Brand Name : | AMILA |
| Model Number : | MP20 |
| Price : | Negotiatable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | Depending on the order quantity |
| Delivery Time : | Negotiatable |

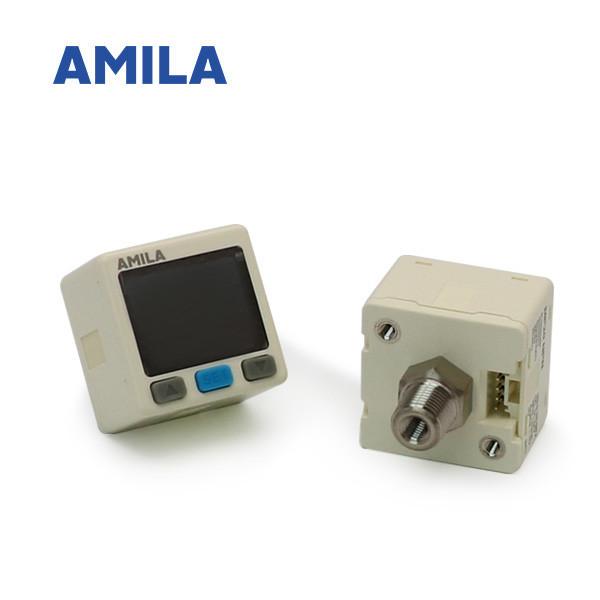

Digital Vacuum Pressure Electronic Switch MP 20 Polycarbonate Case
1. Introduction and application
2. Features
3. Design
4. Advantage

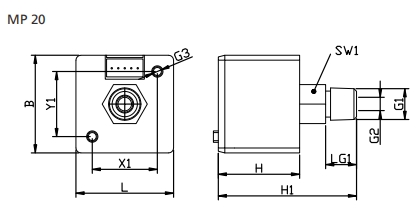

5. Design Data
| Type | Dimensions[mm] | ||||||||||
| B | G1 | G2 | G3 | H | H1 | L | LG1 | SW1 | X1 | Y1 | |
| MP20 | 30 | NPT1/8''-M | M5-F | M3-F | 21.5 | 36.5 | 30 | 8 | 12 | 20 | 20 |
6. Technical Data
| Type | MP 20 |
| Measured medium | Air, non-corrosive, non-flammable |
| Measuring range | -1 bar to 0 bar |
| Max. overpressure | 1.5MPa |
| Repeatability | ±3%F.S.±1digit |
| Hysteresis | Adjustable |
| Inputs/outputs | 2 |
| Switching capacity max. [mA] | MAX80mA |
| Indication | Orange(1 indicator)OUT1. |
| Display accuracy | ±1%F.S. 1 digit (at ambient temperature:25 to 3 ) |
| Display unit | kPa,Mpa,kgf/cm2,bar,psi,inHg,mmHg |
| Measured-value display | 3-color (red,green, orange) display (sampling rate:5 times/s,2 times/s,1 time/s) |
| Measurement medium connection | R1/8",M5 |
| Voltage | 12to24V DC ±10%, the peak value of continuous wave is less than 10%. |
| Current consumption [mA] | ≤ 40MA (without load) |
| Protection level IP | IP40 |
| Temperature effect | ±3%F.S (in the temperature range of 0 ≤ 50 ) |
| Operating temperature [°C ] | 0-50℃ |
| Weight [G] | About 67 g (including 2-meter wire) |
|
|
