| Brand Name : | AMILA |
| Model Number : | MDF |
| Price : | Negotiatable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | Depending on the order quantity |
| Delivery Time : | Negotiatable |
Vacuum Filters MDF Detachable Filter Element With PA,PC,PE Matetial
1. Introduction and Application
2. Features
3. Technology Data
| Type | Pressure range | Material | Temperature range | Filtering accuracy | weight | Nominal flow rate | Internal vacuum | Filter area |
| bar | [℃] | [μm] | [g] | [I/m] | [cm3] | [㎡] | ||
| MDF-15 | -1~0 bar | PA,PC,PE | -20~80 | 10 | 168 | 900 | 195 | 0.01 |
| MDF-20 | -1~0 bar | PA,PC,PE | -20~80 | 10 | 170 | 900 | 205 | 0.01 |

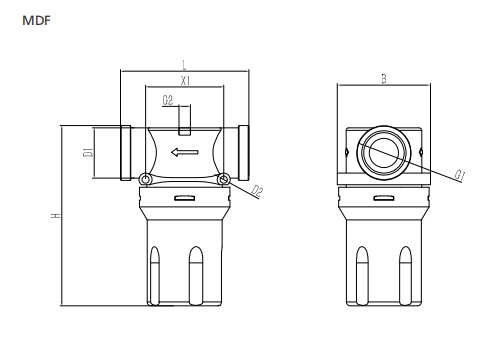

4. Design
| Type | Dimensions [mm] | |||||||
| H | L | B | X1 | D1 | D2 | G1 | G2 | |
| MDF-15 | 138 | 98.5 | 71.5 | 60 | φ38.5 | φ5.5 | G1/2" | NPSF1/8 |
| MDF-20 | 138 | 98.5 | 71.5 | 60 | φ38.5 | φ5.5 | G3/4" | NPSF1/8 |
|
|
