Multistage Vacuum Generator Basic Vacuum Generator M5010 Anodic Alumina

1. Introduction and application

• It can be installed directly with any suctipn cup of G1/2 male thread interface.
• Configure a 2 or 3-level vacuum tube that can be customized to meet your specific requirements. The Si vacuum tube provides high vacuum flow and the Xi vacuum tube provides high vacuum degree.

2. Highlights:

• Exquisite appearance and excellent quality；
• Ejector nozzles with different power ratings；
• Connections either with threaded holes or push-in couplings；
• Integrated valve technology and vacuum monitoring；

3. Design

• Main material is anodic alumina.
• Single vacuum generator
• The sealing element is made of NBR rubber.
• Alternate component: vacuum gauge

4. Technology Data

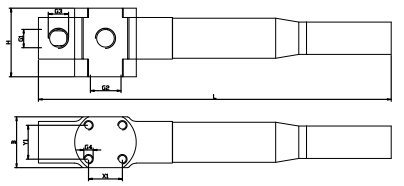

4. Design Date

Basic Ejectors M5010.pdf
