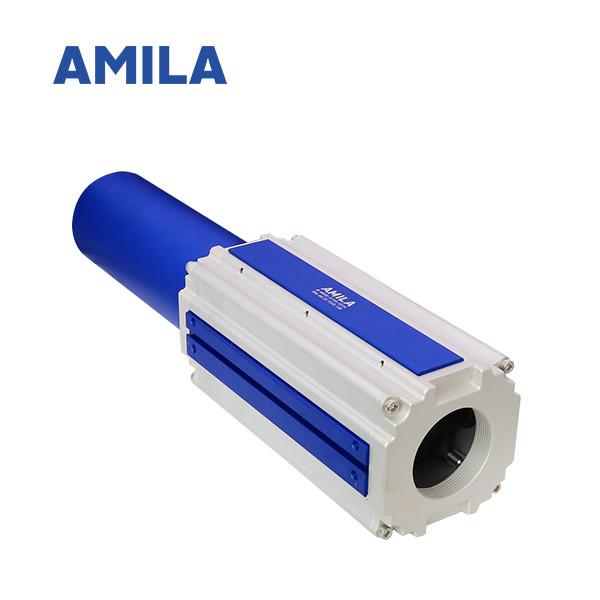

    Basic Vacuum Generator M6040 Anodic Alumina Material with NBR Rubber Sealing

    Ask Lasest Price
    Brand Name : AMILA
    Model Number : Basic Vacuum Generator M6040
    Price : Negotiatable
    Payment Terms : L/C, T/T
    Supply Ability : Depending on the order quantity
    Delivery Time : Negotiatable
    • Product Details
    • Company Profile

    Basic Vacuum Generator M6040 Anodic Alumina Material with NBR Rubber Sealing

    Multistage Vacuum Generator Basic Vacuum Generator M6040 Anodic Alumina


    1. Introduction and application

    • Vacuum interface thread is G2 1/2''.
    • Available in a variety of configurations to customize to your specific requirements. The Si vacuum tube provides high vacuum flow and the Xi vacuum tube provides high vacuum degree.

    2. Design

    • Main material is anodic alumina.
    • Can be selected 5 to 16 vacuum generating tubes with different numbers.
    • The sealing element is made of NBR rubber.
    • Optional components: aluminum silencer, vacuum gauge.

    3.Technology Data

    TypeMaximum vacuumMaximum suction forceAir consumptionOperating pressureweightOperating temperature
    [%][l/min][l/min][bar][g][℃]
    M-6040-SI32-3X570171045054900-10…80
    M-6040-SI32-3X670205254054900-10…80
    M-6040-SI32-3X770239463054900-10…80
    M-6040-SI32-3X870273672054900-10…80
    M-6040-SI32-3X970307881054900-10…80
    M-6040-SI32-3X1070342090054900-10…80
    M-6040-SI32-3X1170376299054900-10…80
    M-6040-SI32-3X12704104108054900-10…80
    M-6040-SI32-3X13704446117054900-10…80
    M-6040-SI32-3X14704788126054900-10…80
    M-6040-SI32-3X15705130135054900-10…80
    M-6040-SI32-3X16705472144054900-10…80
    M-6040-XI40-3X591186060054900-10…80
    M-6040-XI40-3X691223272054900-10…80
    M-6040-XI40-3X791260484054900-10…80
    M-6040-XI40-3X891297696054900-10…80
    M-6040-XI40-3X9913348108054900-10…80
    M-6040-XI40-3X10913720120054900-10…80
    M-6040-XI40-3X11914092132054900-10…80
    M-6040-XI40-3X12914464144054900-10…80
    M-6040-XI40-3X13914836156054900-10…80
    M-6040-XI40-3X14915208168054900-10…80
    M-6040-XI40-3X15915580180054900-10…80
    M-6040-XI40-3X16915952192054900-10…80

    4.Design Data:


    typesize(mm)
    BG1G2G3G4G5HL1L1X1Y1
    M-6040131G1/2-FG1/8-FM5-FG 2 1/2-FM8-F13153229023025

    Basic Ejectors M6040.pdf
