Your Vacuum Application Expert !
6 Years
| Ask Lasest Price | |
| Brand Name : | AMILA |
| Model Number : | Vacuum Regulating Valve MVRV |
| Price : | Negotiatable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | Depending on the order quantity |
| Delivery Time : | Negotiatable |
Vacuum Regulating Valve Technology MVRV With Aluminium Alloy Material
1. Introduction and application
2.Design

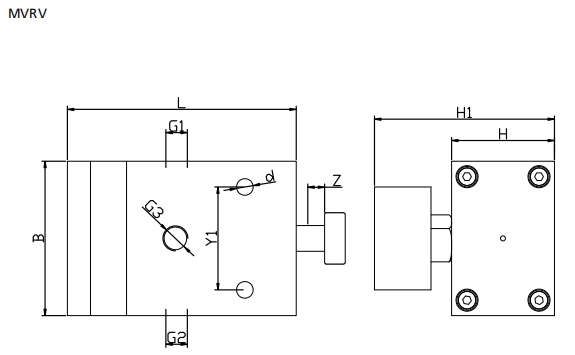

4.Design Data
| type | Size(MM) | |||||||||
| B | D | G1 | G2 | G3 | H | H1 | L | X1 | Z | |
| MVRV G1/4 | 60 | 6.5 | G1/4"-F | G1/4"-F | G1/8"-F | 40 | 70 | 89 | 40 | 10 |
| MVRV G3/8 | 60 | 6.5 | G3/8"-F | G3/8"-F | G1/8"-F | 40 | 70 | 89 | 40 | 10 |
| MVRV G1/2 | 85 | 8.5 | G1/2"-F | G1/2"-F | G1/4"-F | 50 | 80 | 105 | 63 | 10 |
| MVRV G1 | 100 | 8.5 | G3/4"-F | G3/4"-F | G1/4"-F | 50 | 80 | 110.5 | 63 | 10 |
| MVRV G3/4 | 120 | 8.5 | G1"-F | G1"-F | G1/4"-F | 60 | 90 | 118 | 63 | 10 |
| MVRV G1 1/2 | 160 | 8.5 | G1"1/2-F | G1"1/2-F | G1/4"-F | 99 | 129 | 131.5 | 63 | 10 |
|
|
