Vacuum Cup Fittings Spring Buffer Strut MTE-FLEX Non-interference Ball Joint

1. Introduction and application:

• The spherical flexible buffer strut is provided with double-position upper and lower reinforcing springs, and the central spring and the universal ball joint are perfectly compensated.
• Height difference when handling workpiece;
• Handling very sensitive components without additional control requirements (e.g. glass sheets), it ensures that workpieces are set down gently;
• Handling very warped and naturally grown materials (e.g. dried wood) without additional technical control requirements;
• Use under harsh conditions;
• Highly dynamic handling tasks with short cycle times;

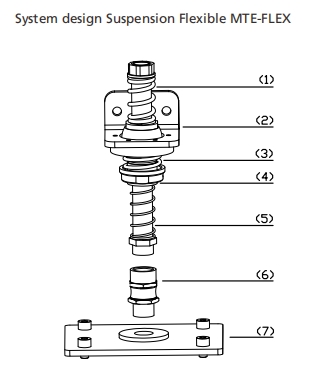

2.Structure

• Spring plunger with stainless steel plunger rod, brass guide sleeve with integrated sliding sleeve, both lower (5) and upper (1) damping spring
• High quality stainless steel protective mounting plate (2) to maintain system balance;With a central reinforcing spring (3) and a spring seat nut (4), the prestress of the center can be adjusted by a lock nut arranged on the spring seat nut module.
• Jointed mounting (6) available as an option (high quality steel and vulcanized bonded rubber)
• The powder coating mounting plate (7) is suitable for large-area grippers systems

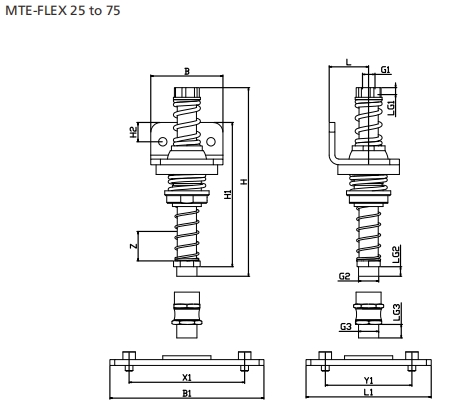

3.Technology Data:

4.Design Data
