Vacuum Cup Fittings Internal Spring Buffer Strut MTI Stainless steel Material

1. Introduction and application:

• Spring plunger with two damping springs for handling of workpieces with differing heights, such as curved metal sheets,etc.
• Handle pressure sensitive workpieces (such as glass) to ensure flexible contact.
• Particularly suitable for handling tasks in the automotive sector.

2. Structure

• Spring plunger consisting of high strength stainless steel rod,brass sleeve with integrated bearing (2) and damping spring;
• The vacuum channel at the upper end of the Plunger is provided with an internal thread connection (1);
• The threads of the connecting sucker are all external threads (4);
• Surface polishing treatment;The surface of the buffer support rod with rotating function has special coating, which can reach to the best sliding effect;
• Two lock nuts for attachment (3);

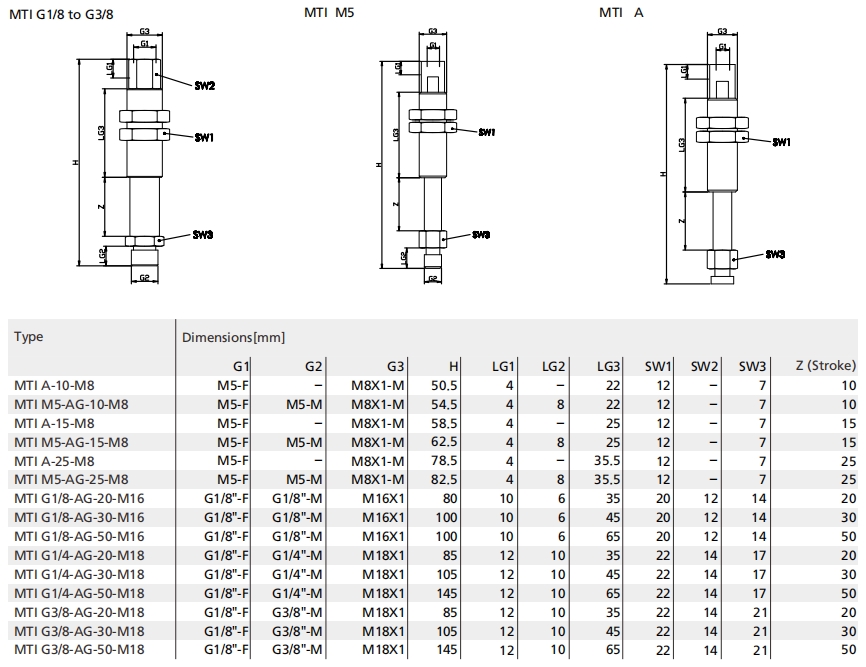

3. Technology Data:

4.Design Data

Spring Plunger MTI.pdf
