| Brand Name : | AMILA |
| Model Number : | Basic Vacuum Generator M5010-B |
| Price : | Negotiatable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | Depending on the order quantity |
| Delivery Time : | Negotiatable |

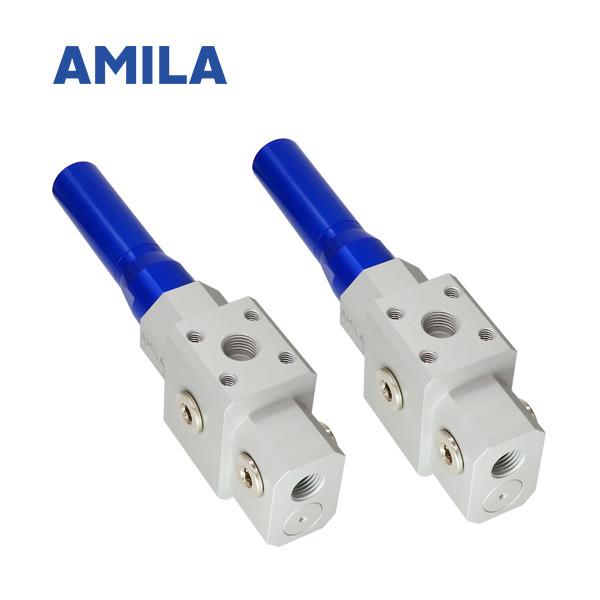

Anodic Alumina Vacuum Generator M5010-B With Alternative Vacuum Tube
1. Introduction and application
2. Design
3. Technology Data
| Type | Maximum vacuum | Maximum suction force | Air consumption | Operating pressure | weight | Operating temperature |
| [%] | [l/min] | [l/min] | [bar] | [g] | [℃] | |
| M-5010-B-SI32-2 | 70 | 192 | 90 | 5 | 190 | -10…80 |
| M-5010-B-SI32-3 | 70 | 342 | 90 | 5 | 190 | -10…80 |
| M-5010-B-SI40-2 | 91 | 168 | 120 | 5 | 190 | -10…80 |
| M-5010-B-SI40-3 | 91 | 372 | 120 | 5 | 190 | -10…80 |
4. Design Date
| type | size(mm) | ||||||||
| B | G1 | G2 | G3 | G4 | H | L | X1 | Y1 | |
| M-5010-B-2 | 33 | G1/4-F | G3/8-F | G1/4-F | M6-F | 51 | 173 | 22 | 22 |
| M-5010-B-3 | 33 | G1/4-F | G3/8-F | G1/4-F | M6-F | 51 | 229 | 22 | 22 |
|
|
