1.Introduction and applicaton

• Round flat suction cups for handling of flat workpieces with smooth or rough surfaces;
• Handling high temperature workpieces(HT1,SI);
• There is almost no trace and antistatic when handling pressure sensitive workpieces(HT1 and AS versions);

2.Structure

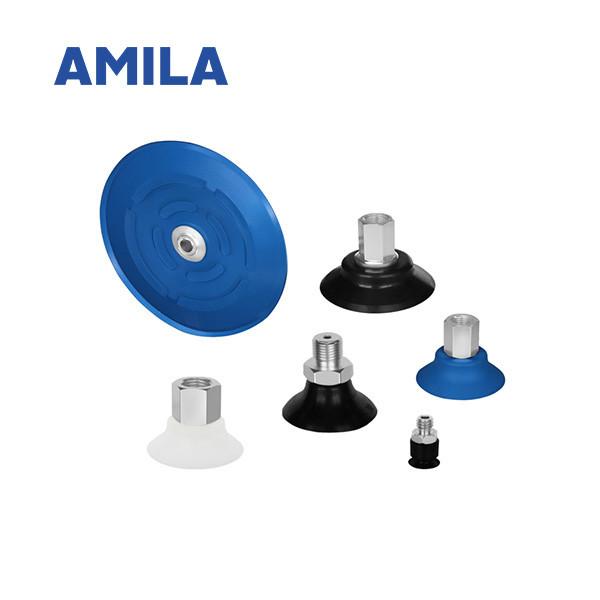

• Strong and wear resistant flat suction cups PFG with single sealing lip consisting of suction pad PFG and connection nipple;
• Diameter 50 MM and below: in-line connector;
• Diameter 60 MM and above: the mounting plate and the suction cup pad are vulcanized together, and the nipple is screwed directly through threads;

3.Technology Data

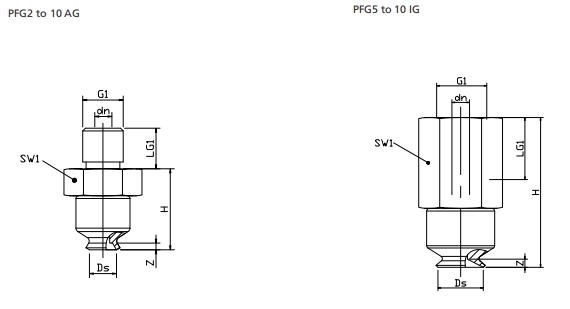

4.Design data:
