Vacuum Valve 2/3 Way Vacuum Solenoid Valve MVV D Aluminum Alloy Material

1. Introduction and application

• The valve is a 2/3-way pneumatically controlled cone valve with a normally open or close type.
• This valve is commonly used in vacuum cut-off of feeders, suction type stackers, robots, openers, etc. where it is necessary to react quickly between the suction in the line and the intake air.

2. Design

• The body is made of aluminum alloy.

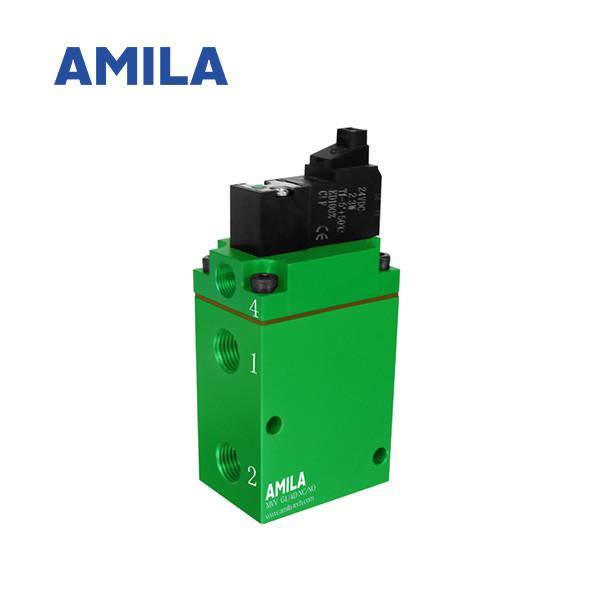

• (4) is the compressed air inlet.
• The integrated solenoid valve is mounted on the machine body and is convenient to control.
• When the valve is used normally open, (1) is the vacuum pump interface, (2)is the pressure relief port, and (3) is the action port.
• When the valve is used as a normally closed, (1 is the pressure relief port, (2 is the vacuum pump interface, and (3 is the action port.

3. Technology Data:
