Vacuum Cup Fittings Spring Buffer Strut MTE-STARR Double Spring Type

1. Introduction and application

• Spring plunger with two damping springs and special slide bearings for handling workpieces with differences in height, e.g. curved sheet metal or wooden parts;
• Handling very warped and naturally grown materials (e.g. dried wood) without additional technical control requirements;
• Highly dynamic handling tasks with short cycle times;

2. Structure

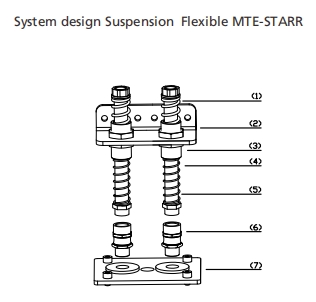

• Spring plunger with stainless steel plunger rod, brass guide sleeve with integrated sliding sleeve both lower (5) and upper (1) damping spring;
• High quality stainless steel mounting plate (2) for fixing brassguide sleeve (4) and integrated sliding sleeve the guide sleeve is attached by two lock nuts (3);
• Optional flexible joint (6) connection (high quality steel and vulcanized adhesive rubber) for maximum angular compensation;
• The powder coating mounting plate (7) is suitable for large-area clamp systems;

3. Technology Data:

4. Design Data

Suspension Flexible MTE-STARR.pdf
