Multistage Vacuum Generator Integrated Vacuum Ejectors MMP Alumina Material
1. Introduction and application

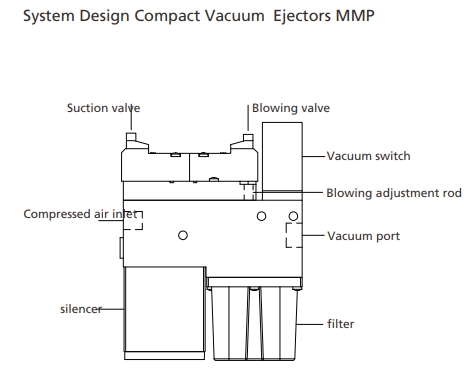

2. Design
3.Technology Data
| Type | Nozzle size | Vacuum | Maximum suction capacity | Suction capacity | Air consumption suction | Air consumption suction | Maximum air consumption suction |
| 【mm】 | 【%】 | [l/min] | [m³/h] | [l/min] | [m³/h] | [l/min] | |
| MMP 15... | 1.5 | 85 | 65 | 3.9 | 117 | 7 | 220 |
| MMP 20... | 2 | 85 | 116 | 7 | 190 | 11.4 | 220 |
| MMP 25... | 2.5 | 85 | 161 | 9.7 | 310 | 18.6 | 220 |
| MMP 30... | 3 | 85 | 200 | 12 | 420 | 25.2 | 220 |
| Type | Noise level suction | Noise level free | operating pressure | Weight | Operating temperature |
| 【dB】 | 【dB】 | 【bar】 | 【g】 | 【℃】 | |
| MMP 15... | 74 | 74 | 5...6 | 465 | 0...45 |
| MMP 20... | 76 | 78 | 5...6 | 465 | 0...45 |
| MMP 25... | 72 | 82 | 5...6 | 485 | 0...45 |
| MMP 30... | 82 | 82 | 5...6 | 485 | 0...45 |
4.Design Date
| type | size(mm) | ||||||||||||
| B | D | G1 | G2 | H | H1 | H2 | H3 | L | L1 | X1 | X2 | Y1 | |
| MMP 15 NC / NO AS | 22 | 5.5 | G1/4''-F | G3/8''-F | 54 | 142.5 | 58.5 | 20 | 112.5 | 37.5 | 49.5 | 69.5 | 12 |
| MMP 20 NC / NO AS | 22 | 5.5 | G1/4''-F | G3/8''-F | 54 | 142.5 | 58.5 | 20 | 112.5 | 37.5 | 49.5 | 69.5 | 12 |
| MMP 25 NC / NO AS | 22 | 5.5 | G1/4''-F | G3/8''-F | 54 | 157.5 | 73.5 | 20 | 112.5 | 37.5 | 49.5 | 69.5 | 12 |
| MMP 30 NC / NO AS | 22 | 5.5 | G1/4''-F | G3/8''-F | 54 | 157.5 | 73.5 | 20 | 112.5 | 37.5 | 49.5 | 69.5 | 12 |
| MMP 15 NC / NO AS VD | 22 | 5.5 | G1/4''-F | G3/8''-F | 54 | 149.5 | 58.5 | 20 | 112.5 | 37.5 | 49.5 | 69.5 | 12 |
| MMP 20 NC / NO AS VD | 22 | 5.5 | G1/4''-F | G3/8''-F | 54 | 149.5 | 58.5 | 20 | 112.5 | 37.5 | 49.5 | 69.5 | 12 |
| MMP 25 NC / NO AS VD | 22 | 5.5 | G1/4''-F | G3/8''-F | 54 | 164.5 | 73.5 | 20 | 112.5 | 37.5 | 49.5 | 69.5 | 12 |
| MMP 30 NC / NO AS VD | 22 | 5.5 | G1/4''-F | G3/8''-F | 54 | 164.5 | 73.5 | 20 | 112.5 | 37.5 | 49.5 | 69.5 | 12 |
Compact
Vacuum Ejectors MMP.pdf
|
|
