Vacuum Cup Fittings Spring Buffer Strut MTA Stainless Steel With Brass

1. Introduction and application:

• Spring plunger with two damping springs for handling of workpieces with differing heights, such as curved metal sheets,etc.
• Handle pressure sensitive workpieces (such as glass) to ensure flexible contact

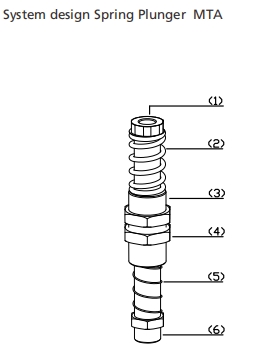

2. Structure

• Spring plunger consisting of a high strength rod made of galvanized steel, guide sleeve (3) and upper (2) and lower (5) damping springs;
• The vacuum channel at the upper end of the Plunger is provided with an internal thread connection (1);
• Thread for suction cup is always a external thread (6);
• Two lock nuts for attachment (4).

3.Technology Data:

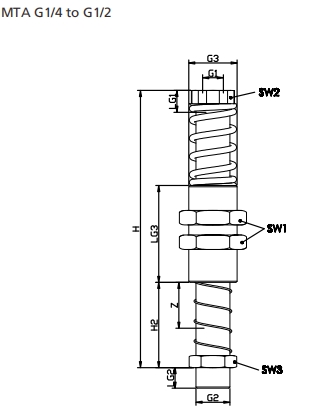

4.Design Data
