1. Introduction and applicaton

• Round flat suction cup suitable for carton handling and packaging machinery;
• Handling of cardboard and rigid packaging in top or side;
• Suitable for palletizing and demolition;
• Strong and wear-resistant suction cup, excellent sealing performance, suitable for high load applications;

2. Structure

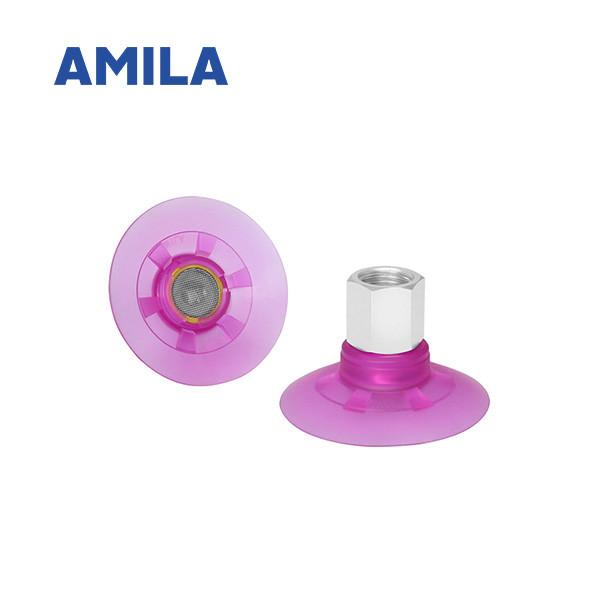

• Round flat suction cup MF (1) with soft, flexible sealing lip and reinforced structure on the cup surface;
• Made of wear-proof material TPE-70；
• The joint of suction cup with a diameter of 30mm is Plug-in threaded joint;
• The 40mm diameter suction cup connector consists of two parts:machine-side component (2) and suction-side component (3);
• Clip-in filter screen (4) as pre-filter (filter pore size 250 µm);
• All externally threaded joints are equipped with O-rings;

3.Technology Data

4.Design data of flat Suction Cup MF

5.Design data of Connecting parts
