| Brand Name : | AMILA |
| Model Number : | ATE |
| Price : | Negotiatable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | Negotiatable |
| Delivery Time : | Depending on the order quantity |

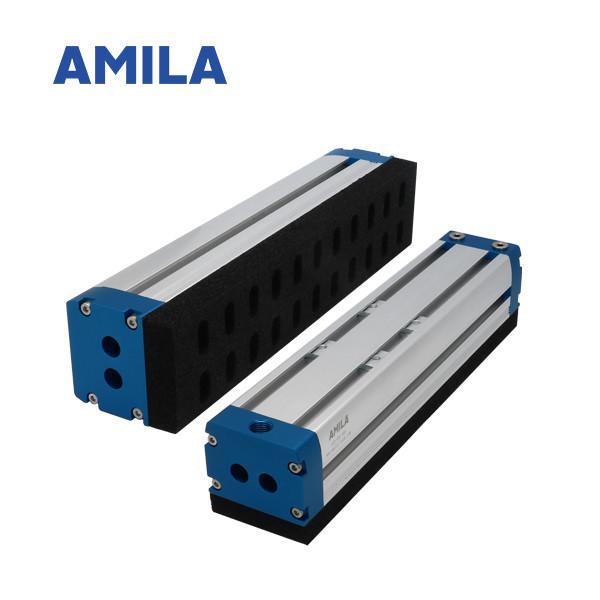

Foam Vacuum Gripper Large Area Vacuum Gripping System ATE
1. Introduction
2. Technical parameter:
| Type | Number of suction holes | Air consumption | Maximum suction capacity | Maximum vacuum | Suction force | Weight |
| 【I/min】 | 【I/min】 | 【%】 | 【N | 】 【kg】 | ||
| ATE-SVK 200 | 14 | 180 | 375 | 60 | 56 | 1.1 |
| ATE-SVK 250 | 22 | 180 | 375 | 60 | 88 | 1.4 |
| ATE-SVK 300 | 30 | 180 | 375 | 60 | 120 | 1.7 |
| ATE-SVK 400 | 38 | 180 | 750 | 60 | 152 | 2.1 |
| ATE-SVK 500 | 46 | 180 | 750 | 60 | 184 | 2.4 |
| ATE-SVK 600 | 54 | 180 | 750 | 60 | 216 | 2.7 |
| ATE-SW 200 | 14 | 180 | 375 | 60 | 56 | 1.1 |
| ATE-SW 250 | 22 | 180 | 375 | 60 | 88 | 1.4 |
| ATE-SW 300 | 30 | 180 | 375 | 60 | 120 | 1.7 |
| ATE-SW 400 | 38 | 180 | 750 | 60 | 152 | 2.1 |
| ATE-SW 500 | 46 | 180 | 750 | 60 | 184 | 2.4 |
| ATE-SW 600 | 54 | 180 | 750 | 60 | 216 | 2.7 |
|
|
