Foam Vacuum Gripper Large Area Combined Rubber Grippers ATC MX39
1. Features
2. Technical Data:
| Type | Number of suction holes | Air consumption | Maximum suction capacity | Maximum vacuum | Suction force | Weight |
| 【I/min】 | 【I/min】 | 【%】 | 【N】 | 【kg】 | ||
| ATC-SVK 294 MX39 | 15 | 180 | 1050 | 60 | 155 | 3.4 |
| ATC-SVK 420 MX39 | 23 | 180 | 1050 | 60 | 250 | 4.2 |
| ATC-SVK 508 MX39 | 27 | 270 | 1190 | 60 | 295 | 4.6 |
| ATC-SVK 618 MX39 | 33 | 270 | 1350 | 60 | 360 | 5.1 |
| ATC-SVK 816 MX39 | 44 | 360 | 1600 | 60 | 480 | 7.7 |
| ATC-SVK 978 MX39 | 53 | 450 | 2200 | 60 | 580 | 8.9 |
| ATC-SVK 1212 MX39 | 66 | 540 | 2940 | 60 | 720 | 10.3 |
| ATC-SVK 1410 MX39 | 77 | 630 | 3180 | 60 | 840 | 11.7 |

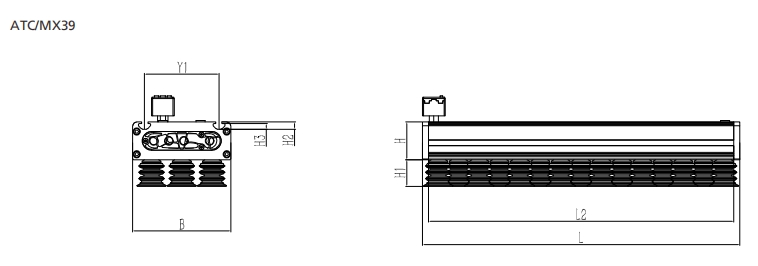

| Type | Dimensions[mm | |||||||
| B | H | H1 | H2 | H3 | L | L2 | Y1 | |
| ATC-SVK 294 MX39 | 130 | 50 | 38 | 9.7 | 7.7 | 294 | 278 | 98 |
| ATC-SVK 420 MX39 | 130 | 50 | 38 | 9.7 | 7.7 | 420 | 404 | 98 |
| ATC-SVK 508 MX39 | 130 | 50 | 38 | 9.7 | 7.7 | 508 | 492 | 98 |
| ATC-SVK 618 MX39 | 130 | 50 | 38 | 9.7 | 7.7 | 618 | 602 | 98 |
| ATC-SVK 816 MX39 | 130 | 50 | 38 | 9.7 | 7.7 | 816 | 800 | 98 |
| ATC-SVK 978 MX39 | 130 | 50 | 38 | 9.7 | 7.7 | 978 | 962 | 98 |
| ATC-SVK 1212 MX39 | 130 | 50 | 38 | 9.7 | 7.7 | 1212 | 1196 | 98 |
| ATC-SVK 1410 MX39 | 130 | 50 | 38 | 9.7 | 7.7 | 1410 | 1394 | 98 |
|
|
