1. Introduction:

• The movable joint of vacuum suction cup is a new auxiliary component of suction cup for AMILA, which can be screwed into suction cups of different specifications. The supporting hose passes through the joint,connecting rod and base to form a reliable vacuum solution;
• The piping is placed inside the joint, which is convenient to install.
• The joint angle can be freely adjusted to adapt to various products.

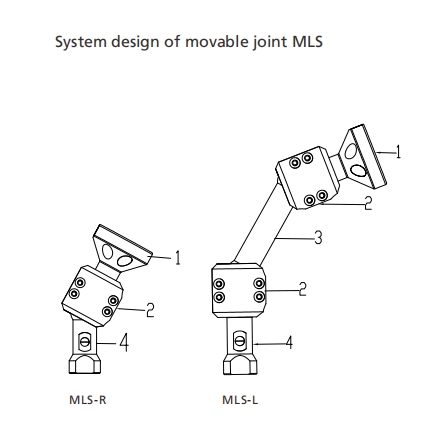

• (1) ball head fixing mounting seat;
• (2) ball head clasping block;
• (3) ball head extension rod;
• (4) the connector of ball head and suction cup

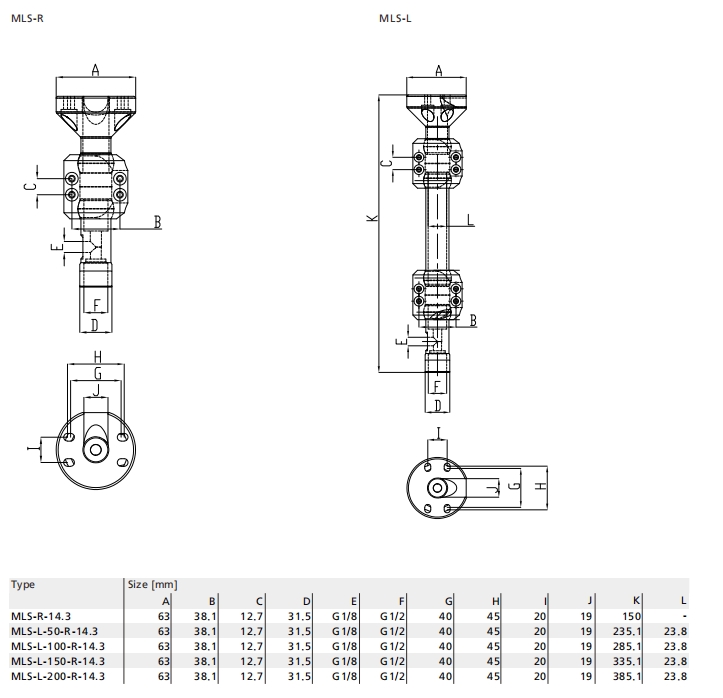

3. Deaign data:

MLS(1).pdf
