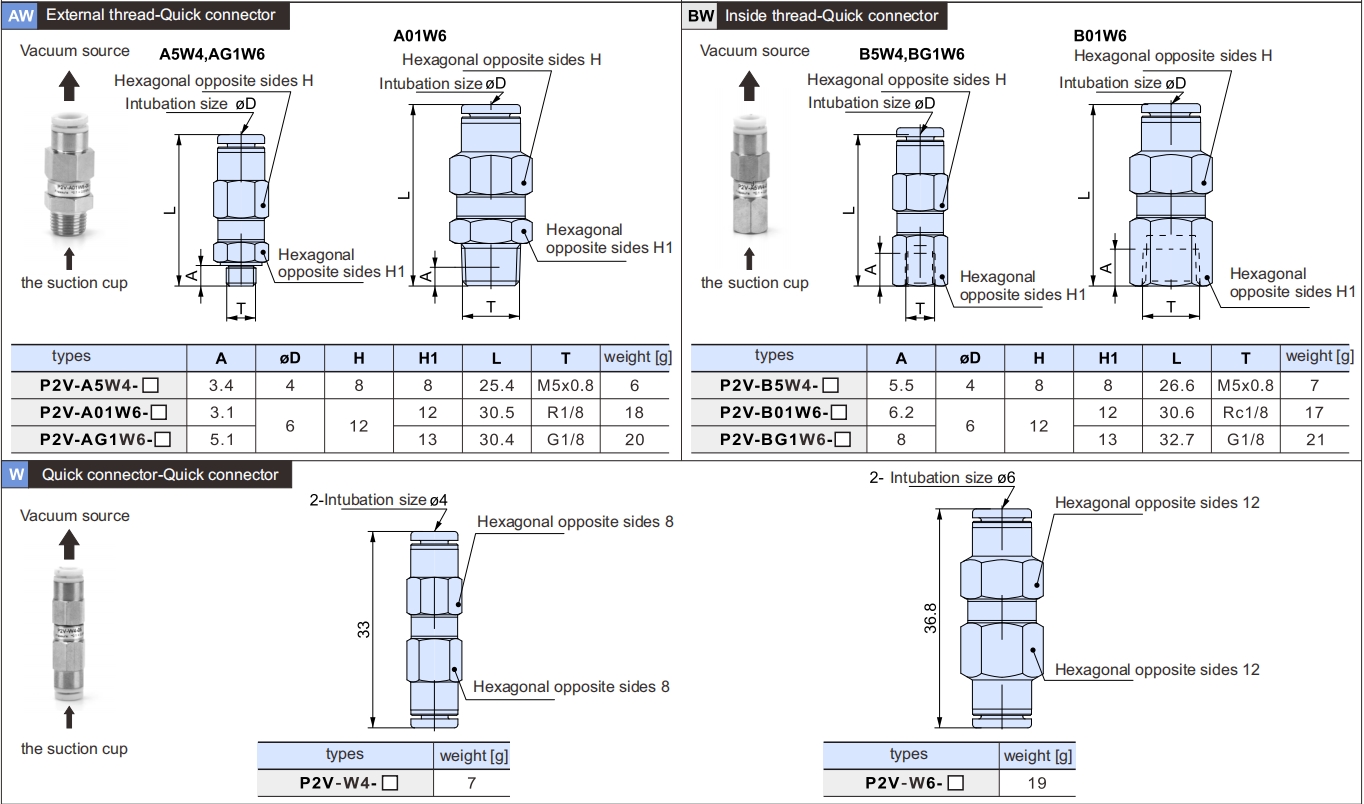

Vacuum Logical Valve P2V Combined With Vacuum Suction Cup For Handling Workpieces

1. Operation principle in application

• When the vacuum suction cups does not catch the workpiece, the valve core will be closed by the air flow , and the flow can only pass through the fixed throttle aperture. At this time, each fixed throttle aperture can suck the corresponding air; When the vacuum suction cup catch the workpiece, the suction flow decreases, the valve core will be opened by the spring force , and the suction flow between the valve core and the housing will open.
